XProtect Plugin installation

Requirements:

XProtect VMS Products version XProtect Express+ 2023 R1 or later

Microsoft Visual C++ Redistributable Latest Supported

Plug-in installation:

1. Run XProtect Smart Client and go to the “Setup” menu.

2. Go to “Settings”

3. Choose “FF Data Factory” from the settings list

4. Input URL of the FF Data Factory web UI (URL example: http://10.0.5.100:5001/)

5. Press “Apply” button. As a result, you should see the status “Registered”

6. Now you can close the “Settings” window

7. Restart Milestone Mobile Server

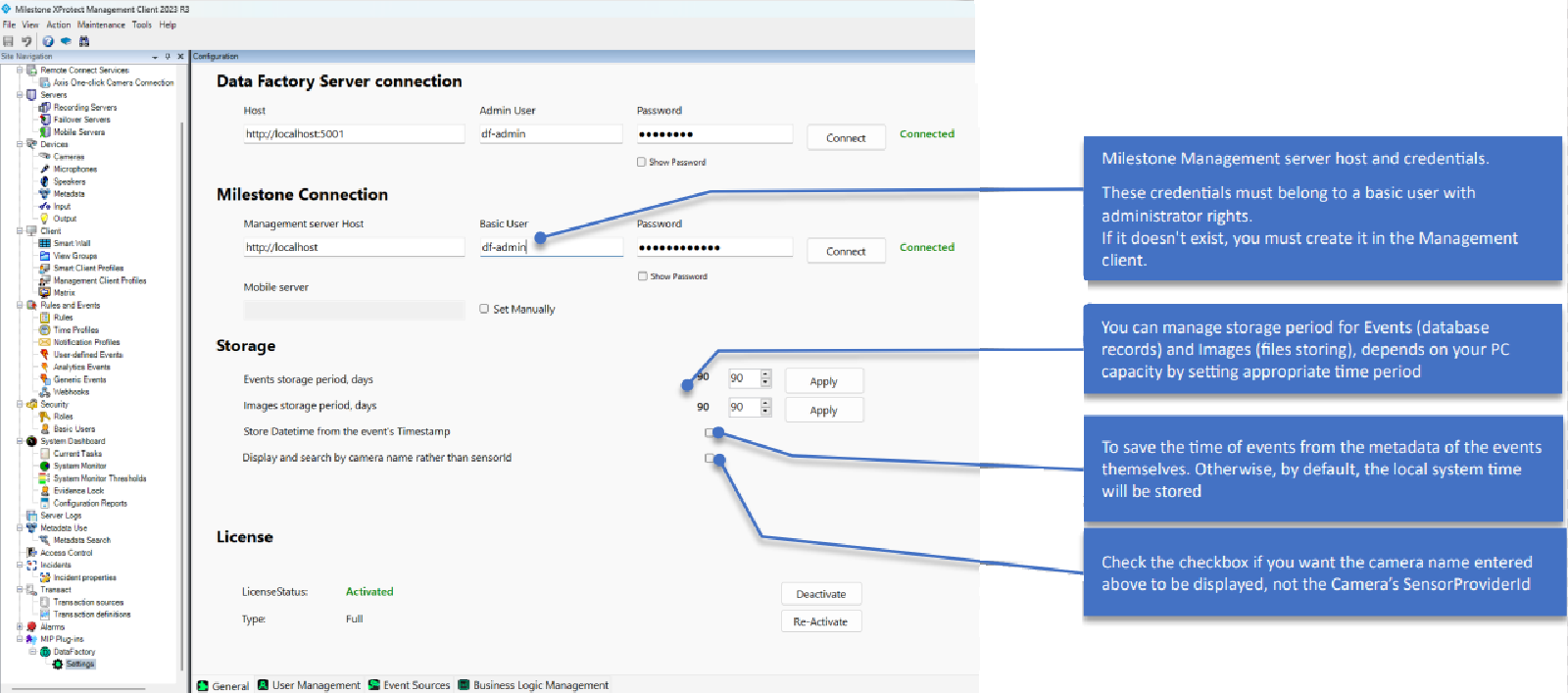

Management Client:

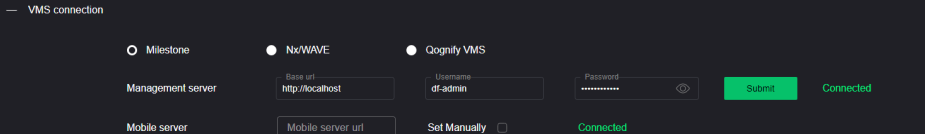

You can see the same settings in DataFactory web UI
There are also 2 statuses of connection:
- Management server – important for camera list pulling
- Mobile server – important for playing video

In User Management section in settings page you can:
▪ add, delete users
▪ set the pages available for viewing
You cannot delete df-admin user

Please ensure that a Basic user has been created in Milestone > Security Tab and that the Administrator role has been assigned to this user.

This configuration is necessary for proper access and functionality.

Go back to your Milestone installation.

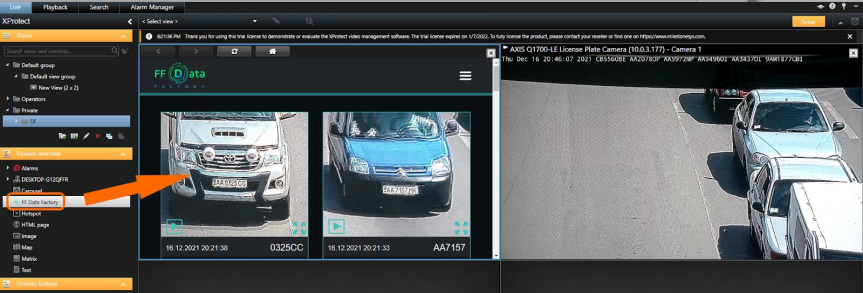

Open the "Setup" menu and drag the FF Datа Factory icon to the appropriate window in the Milestone XProtect client

Now you can use FF Data Factory fully inside Milestone XProtect
