Camera mounting recommendations

Camera mounting recommendations

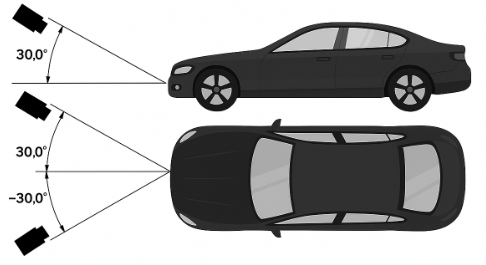

Camera Mounting Angle:

The ideal camera's mounting angle - 30°.

This ensures that the camera captures the desired field of view without excessive tilting, which can affect the accuracy of the captured data.

Horizontal License Plate Alignment:

It is crucial to align the license plate image horizontally within the camera's field of view.

The license plate should not be tilted more than 10° horizontally.
If the image appears tilted beyond this threshold, it is recommended to adjust the camera's position so that the license plate appears horizontally in the live stream.


Minimum License Plate size:


Recommended License Plate Size for different plate types.


FHD

4K

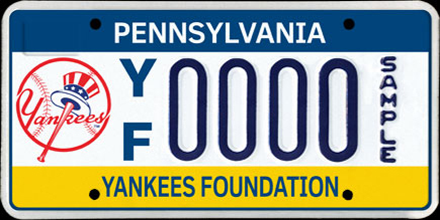

USA License plate with stacked characters

140-350 px

140-500 px

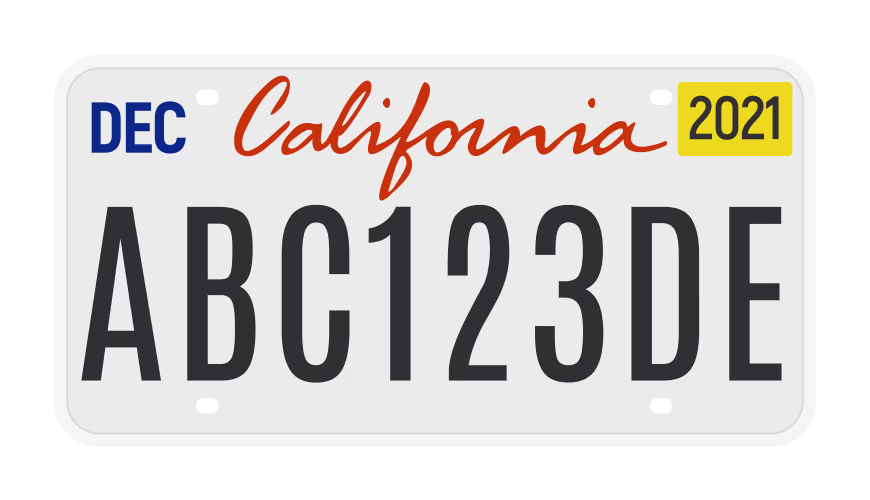

USA 1-line License plate

90-350 px

130-500 px

1-line

EU,TUR,ISR,

South American

plates


80-350 px


120-500 px

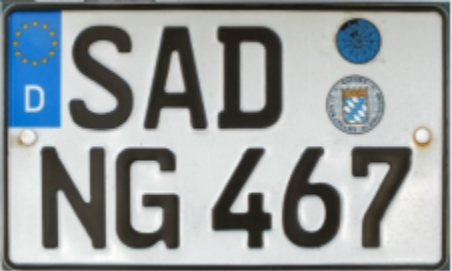

2-line

EU

plates

80-350 px

110-500 px

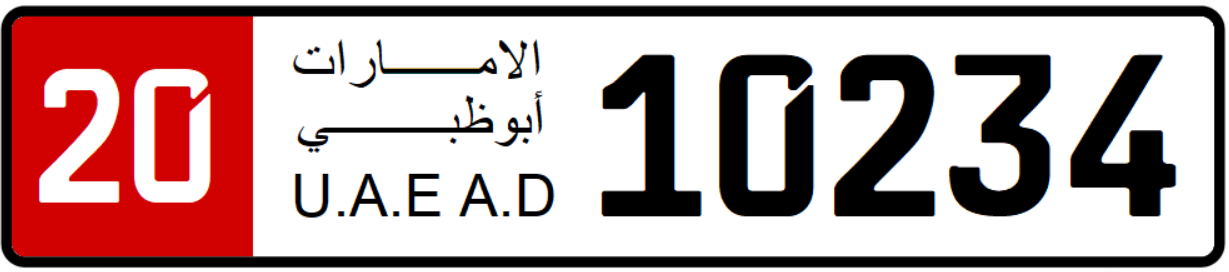

GCC long plates

90-350 px

120-500 px

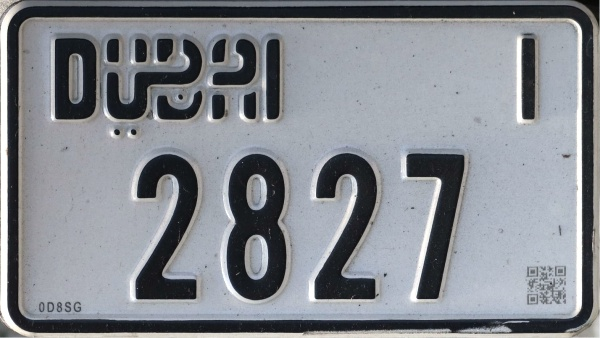

GCC short plates


80-350 px


110-500 px

GCC motorcycle plates

80-350 px

110-500 px

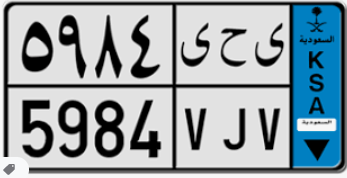

2-line

GCC KSA

plates


120-350 px


120-500 px



Optimal camera installation point:
