CAMMRA AI connection

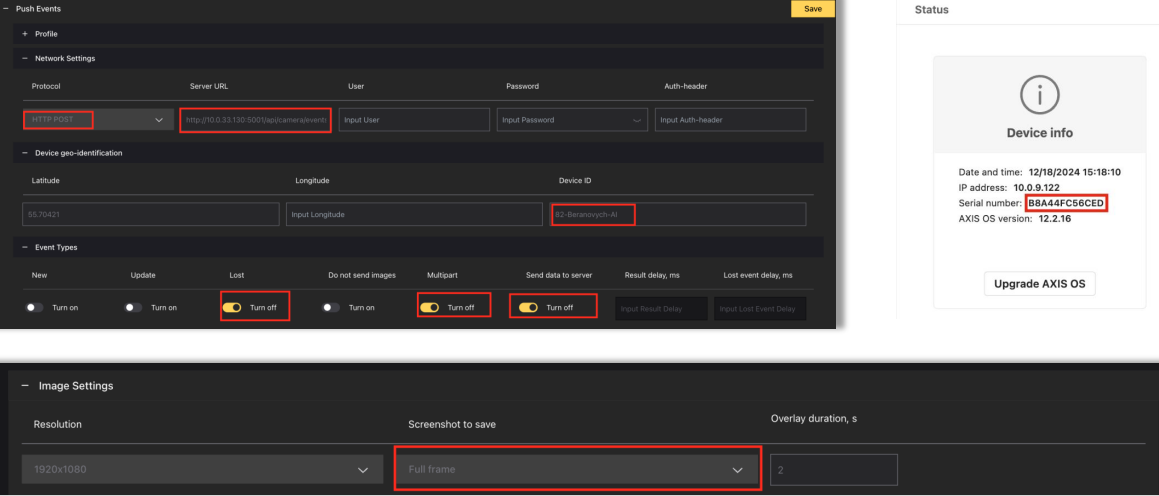

▪ In Integration – Push events menu choose one of the profiles, HTTP POST as protocol, insert server URL:
http:// 10.0.5.100:5001/api/camera/events/upload (example)

▪ Fill in Device ID and enable sending event types, you can choose any, but “lost” is preferred, enable “Multipart” and finally enable “Send data to server”

▪ For best looking and maximum quality image in DF choose “Full frame” in Settings – Image settings menu.

▪ In stand-alone mode (no VMS) don’t forget to register the camera in DF by its serial number.
