FTP Fields Naming Conventions for CAMMRA AI Event Data
When CAMMRA AI sends events to an FTP server, it uses a specific pattern for naming the files, ensuring that each event's critical details are stored systematically.
The naming convention encapsulates information like the timestamp, direction, car ID, license plate, country, and more.
This structure is essential for organizing, parsing, and managing the data efficiently.

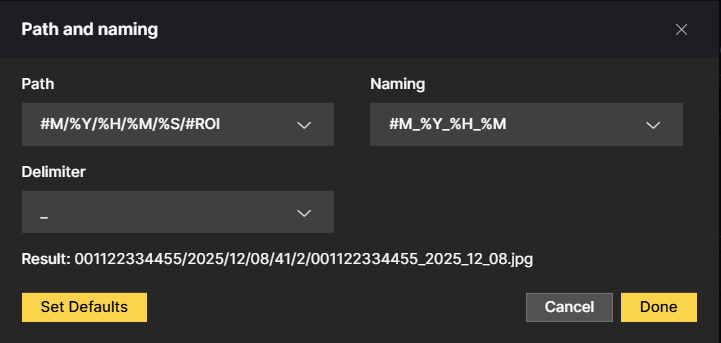

File Naming Pattern
The naming convention follows this pattern:

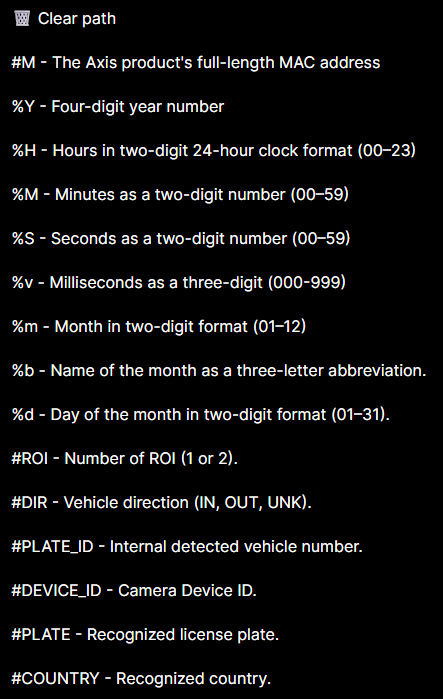

#DEVICE_ID/%Y%m/%d/%Y%m%d%H%M%S_%v_#AOI_#DIR_#PLATE_ID_#PLATE_#COUNTRY
Example:
20240913141423_613_roi_1_in_7543_47ATDPN_USA_Ford_Explorer_SUV_BLACK
| Field | Description | Example |
|---|---|---|
| Timestamp | Date, time, and milliseconds of the event | 20240913141423_613 |
| ROI Number | Region of interest in the image/video | roi_1 |
| Direction | Direction of vehicle movement | in |
| Car ID | Unique vehicle identifier | 7543 |
| License Plate | Vehicle’s license plate number | 47ATDPN |
| Country | Vehicle’s registration country | USA |
| Make | Vehicle manufacturer | Ford |
| Model | Vehicle model | Explorer |
| Color | Vehicle color | BLACK |
Type Vehicle type SUV
