Integration with Teltonika-RUT955

Integration with Teltonika-RUT955

System setup

  1. RUT955

    1. Axis Camera with CAMMRA application and Teltonika-RUT955 should be within one local network.

    2. Start CAMMRA application

    3. Go to  Teltonika-RUT95 web interface.

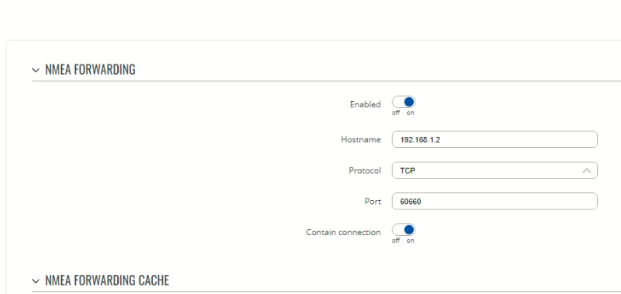

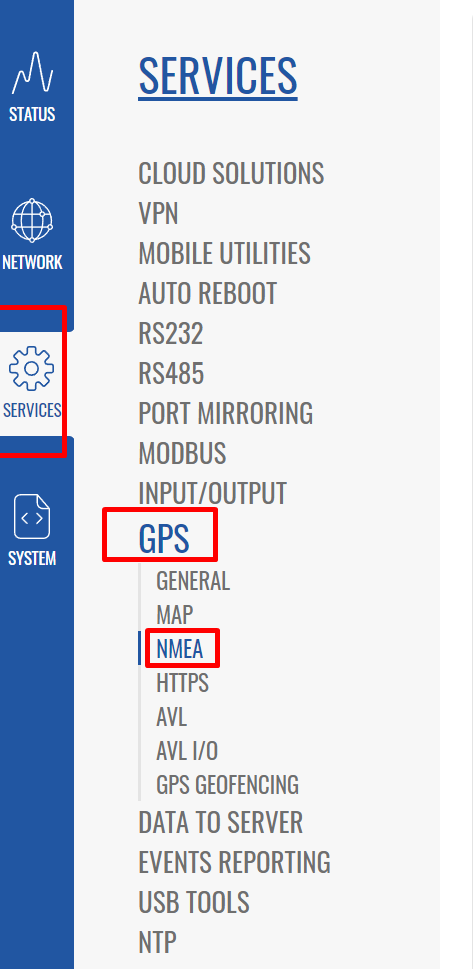

In Services -> GPS -> NMEA Set

  • Enabled

  • Axis Camera with CAMMRA application IP address

  • Port - use 60660 by default

  • Contain connection

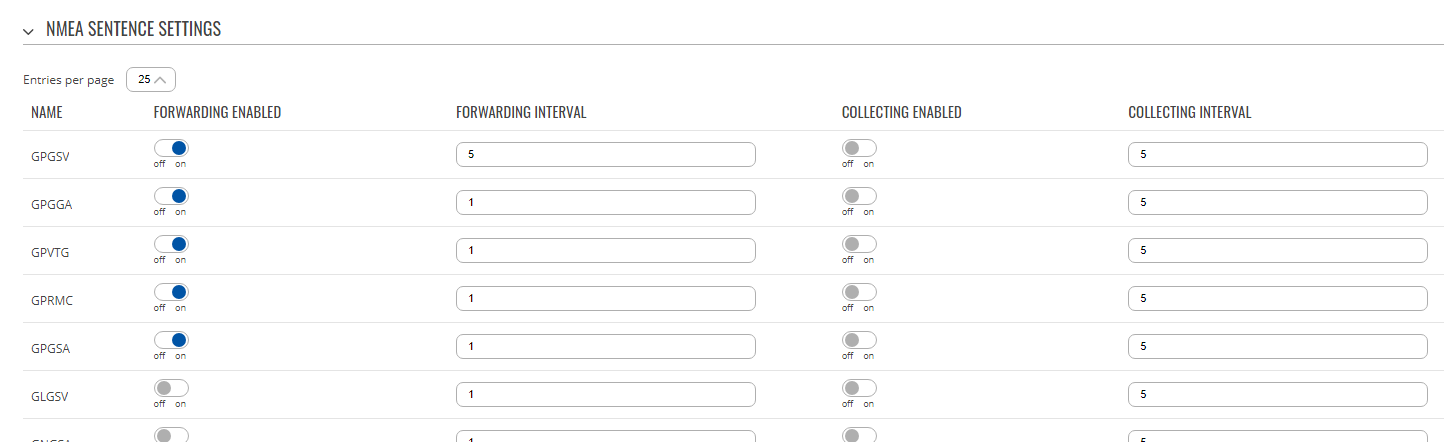

Scroll Down to NMEA SENTENCE SETTINGS and enable forwarding for NAMES

  • GPGSV

  • GPGGA

  • GPVTG

  • GPRMC

  • GPGSA

Then SAVE  & APPLY

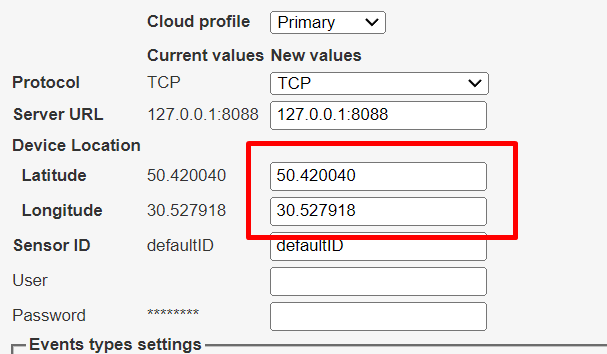

  1. How to check the GPS data


Coordinate values should change after  switching between tabs (integration<->Search, for example  )
 and be ~ the same as in Teltonika-RUT95



  1. Set up integration with  DataFactory


  • Server URL

  • Choose "lost" events (events will be sent to DataFactory + 10 s upon the latest detection. Coordinates and image will be from the first detection)

  • Set “Send event  to server”

  • SAVE
