HxGN dC3 Video (QVMS) integration

HxGN dC3 Video (QVMS) integration

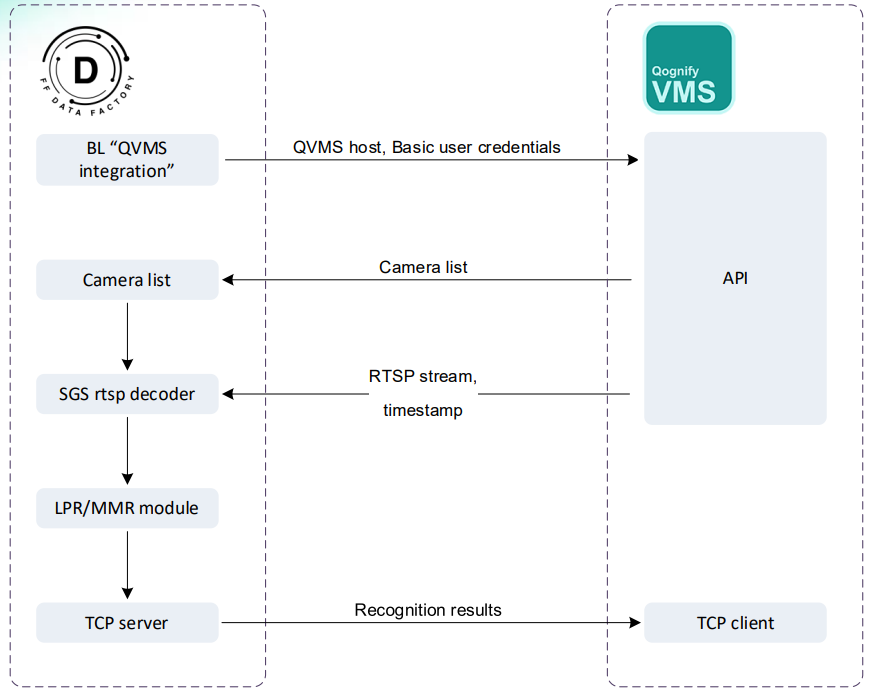

Interaction scheme:


Configure Qognify VMS

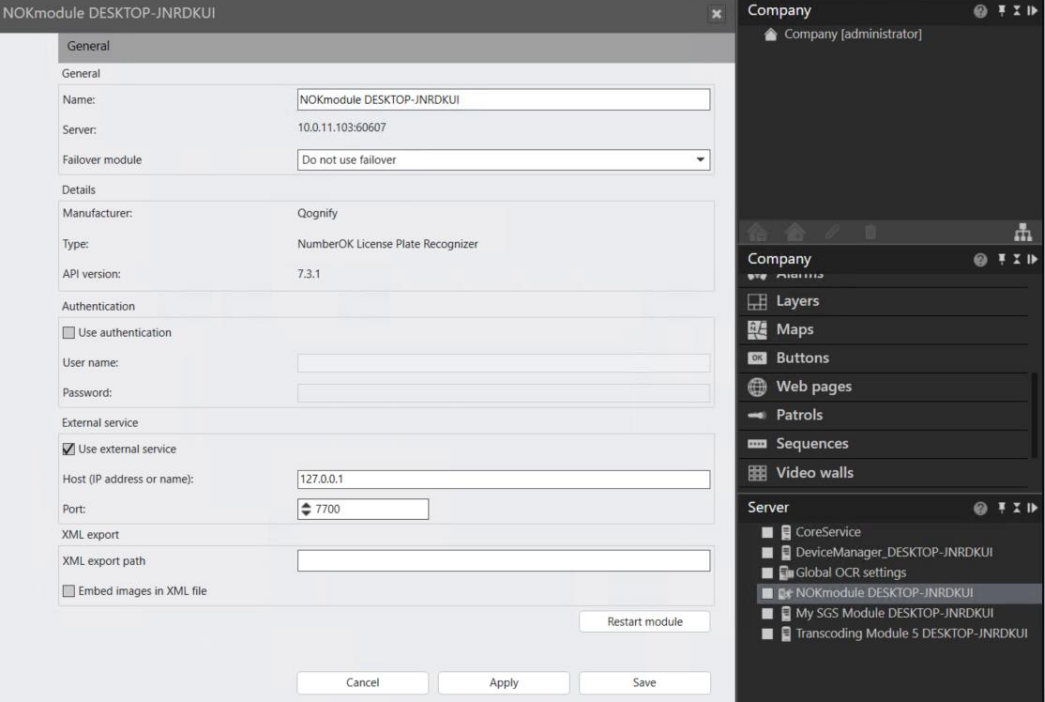

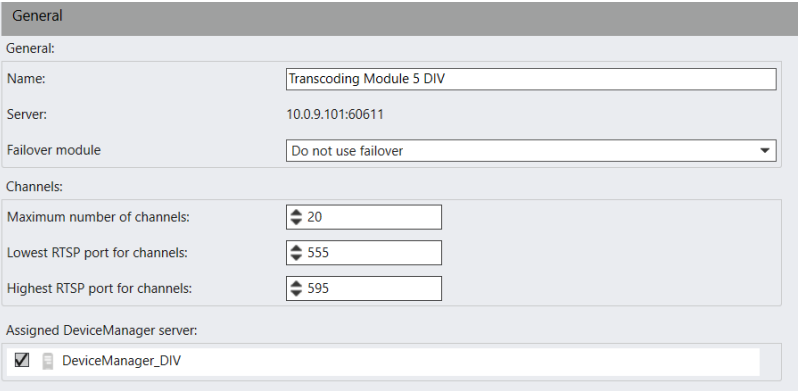

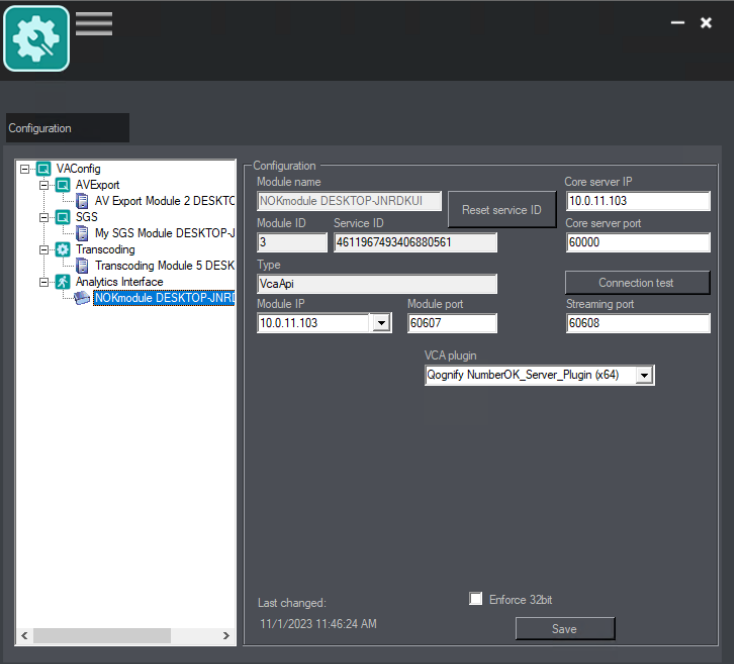

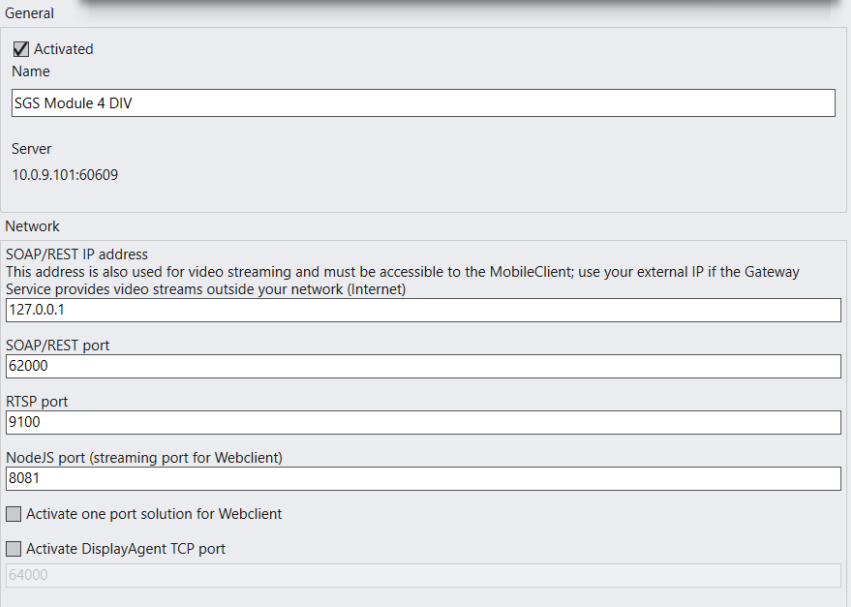

Make sure, that Qognigy NumberOK_Server_Plugin is installed, as well as SGS and Transcoding QVMS modules:

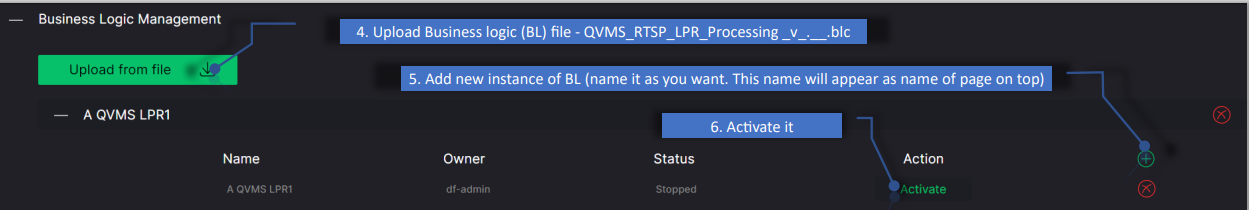

Install FF Data Factory and add business logic

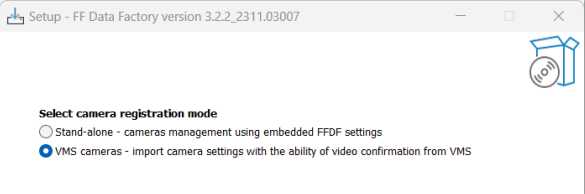

1. Install FF Data Factory in VMS mode (See details in Quick Installation Guide)
2. Goto settings page


3. Activate DF (if it is not activated yet)


The new page (dashboard) will appear

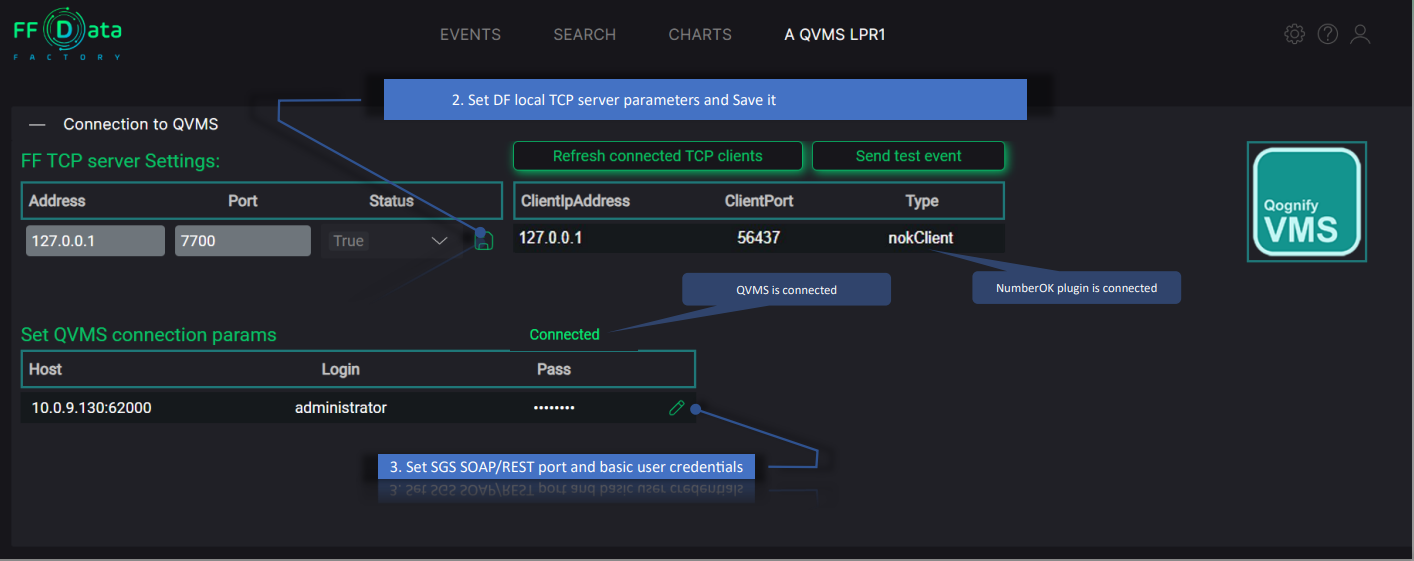

Set QVMS connection parameters

1. Go to QVMS dashboard

Default TCP settings are on the screenshot
To check connected TCP Clients press Refresh connected TCP clients button
To send test event to Client press Send test event button

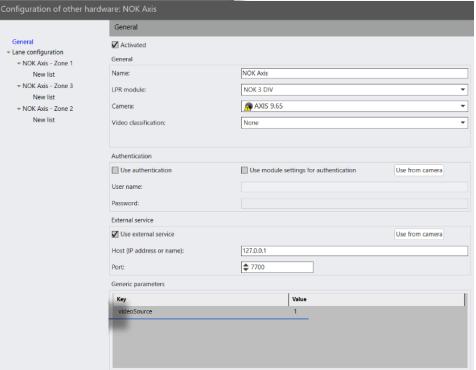

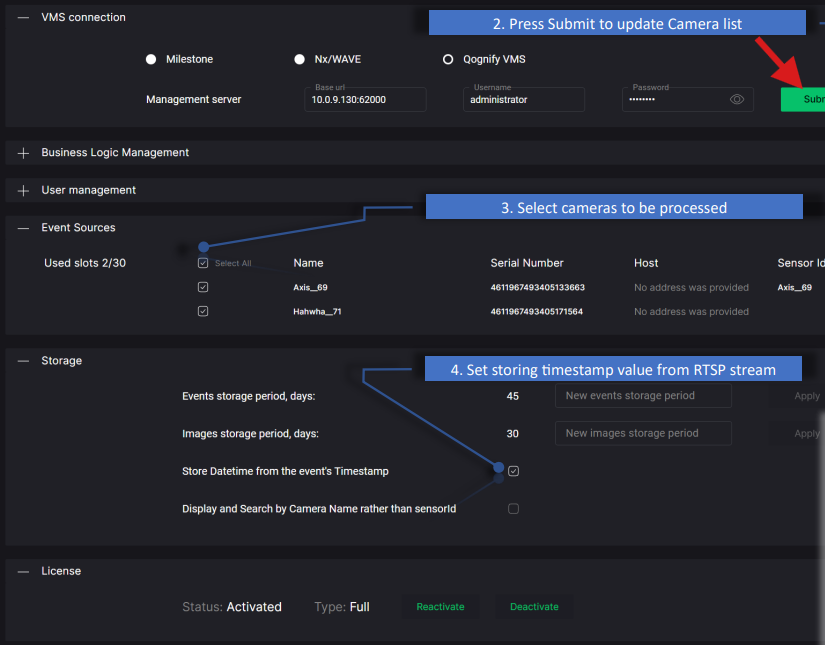

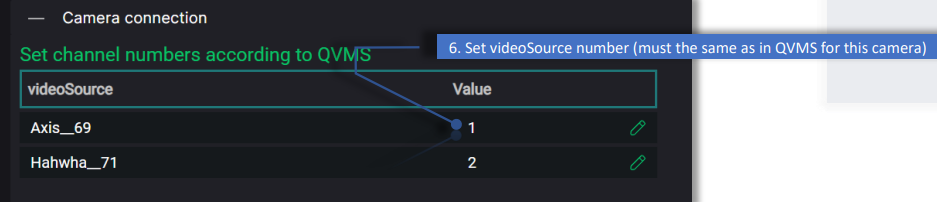

Activate cameras

1. Go to settings page

Go to QVMS dashboard

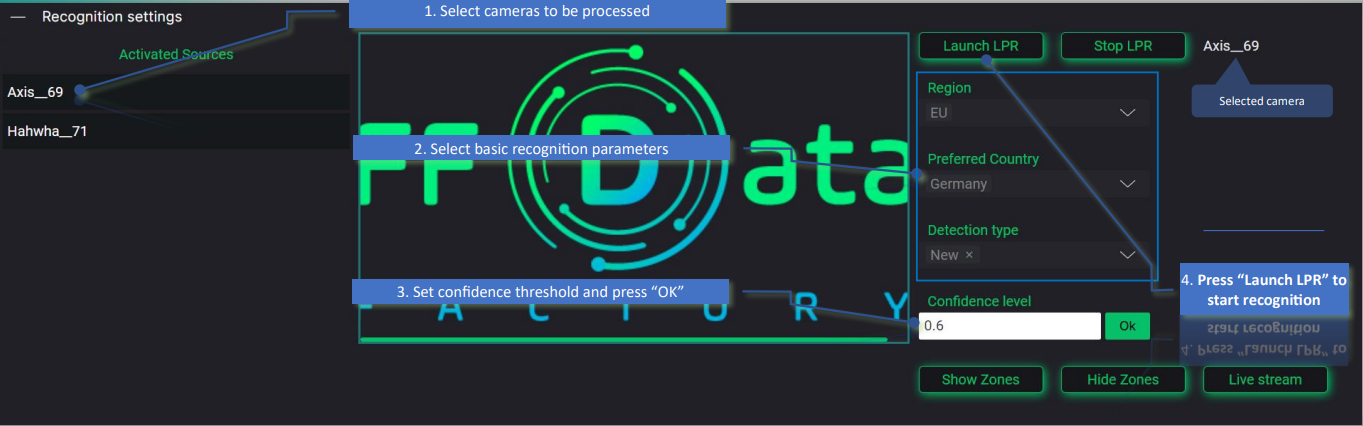

Set Recognition parameters and launch

Check events receiving in QVMS.
Events must appear in: C:\Program Files\Qognify\VMS\log\Plugin_NumberOK_Server.log (default path)

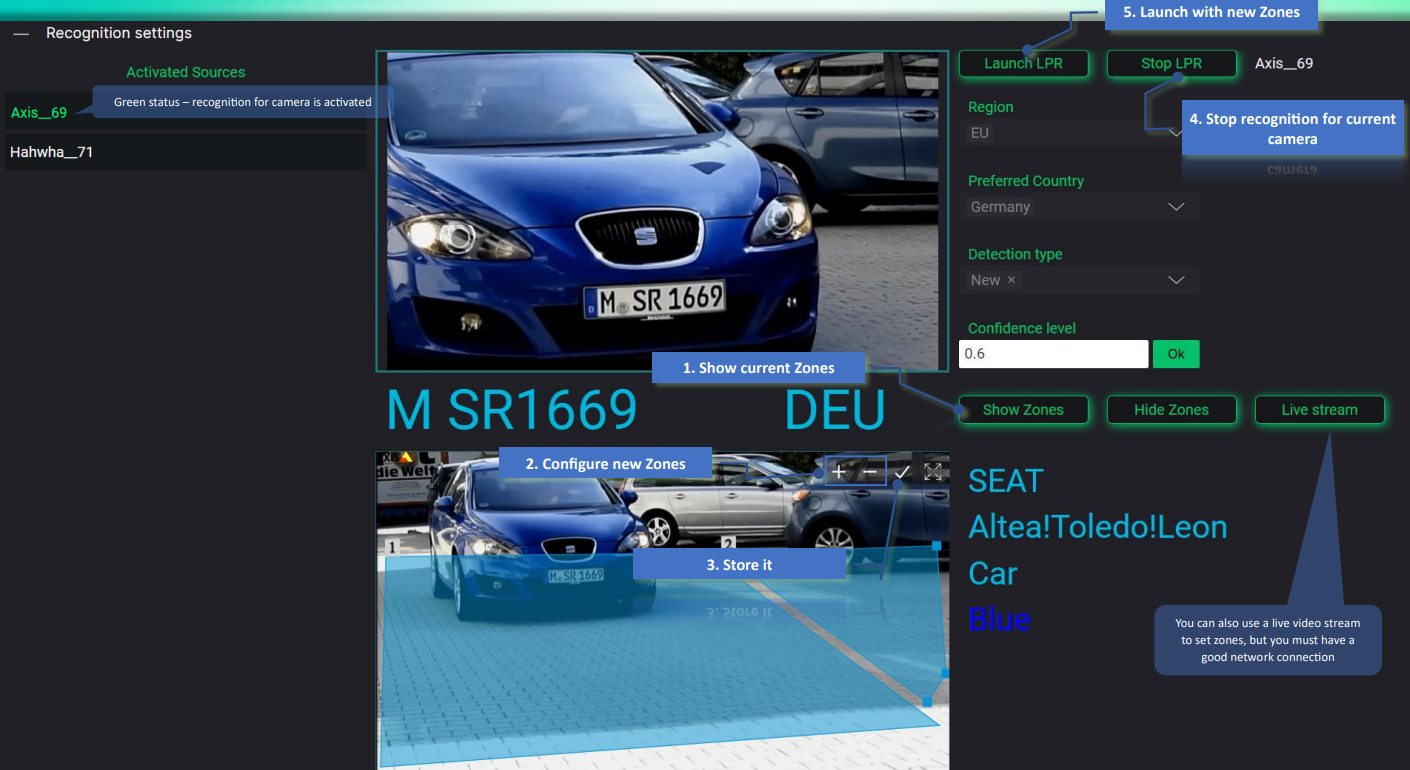

After 1st recognition you can set Zones (by default there is only Zone equal to full frame).

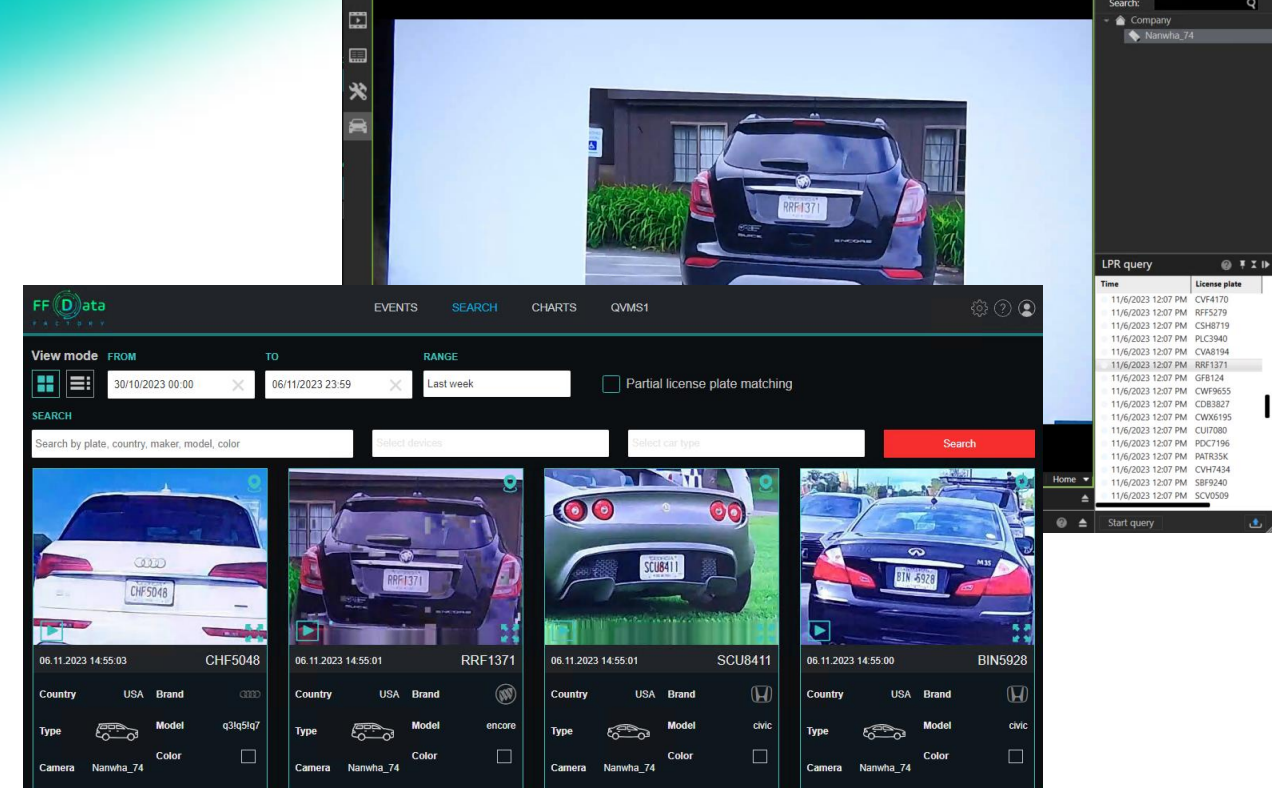

Results showing

​
