VMS installation mode (XProtect on remote machine)
To install DF Plugins for Milestone on a remote
machine without installing the DF core,
you may install it separately with a special installer – Milestone Plugins.exe
you may install it separately with a special installer – Milestone Plugins.exe

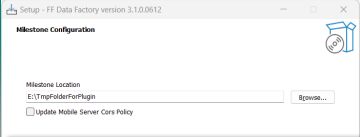

If the Milestone is on another host machine uncheck box Update Mobile Server Cors Ploicy
and choose folder for MIP plugin unpacking (this folder must exist!).
Copy folder DataHubBrowser located in path you specified in this step. (e.g. E:\TmpFolderForPlugin – on screenshot)
to MIP folder on remote machine (e.g. C:\Program Files\Milestone\MIPPlugins).
Copy folder DataHubBrowser located in path you specified in this step. (e.g. E:\TmpFolderForPlugin – on screenshot)
to MIP folder on remote machine (e.g. C:\Program Files\Milestone\MIPPlugins).

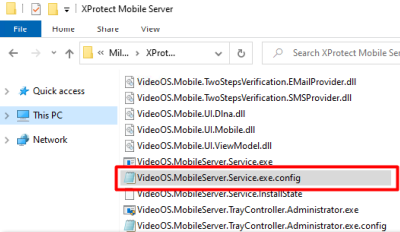

On remote machine add an additional field to the
VideoOS.MobileServer.Service.exe.config file.
You can find this configuration file by the default path C:\Program
Files\Milestone\XProtect Mobile Server.
Open standard Microsoft Notepad application as an Administrator.
Open VideoOS.MobileServer.Service.exe.config file.

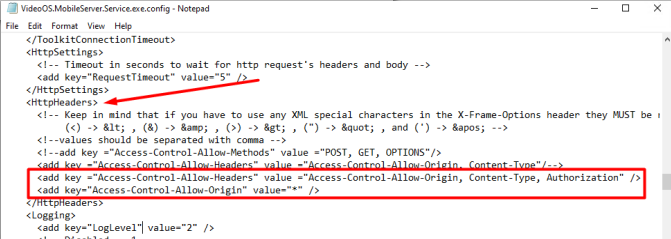

Find section <HttpHeaders> and put next line into the end of this section:
<add key="Access-Control-Allow-Origin" value="*" />
<add key ="Access-Control-Allow-Headers" value =
"AccessControl-Allow-Origin, Content-Type, Authorization" />
<add key="Access-Control-Allow-Origin" value="*" />
<add key ="Access-Control-Allow-Headers" value =
"AccessControl-Allow-Origin, Content-Type, Authorization" />
Save all changes (Ctrl+S),
close the file and restart
Milestone Mobile Server
