WAVE integration

WAVE integration

DataFactory should be installed in VMS mode.

On DF setting page check “Nx/Wave” in VMS connection section and enter WAVE connection host and credentials

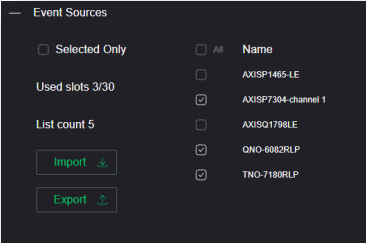

After clicking on the “Submit” button the camera list will pulled into DataFactory, then select the cameras you would like to use.

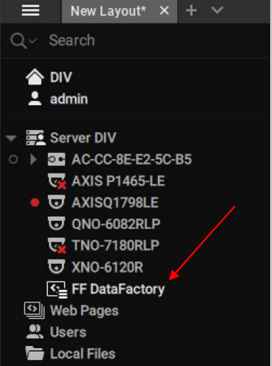

And DataFactory page will appear in WAVE client:

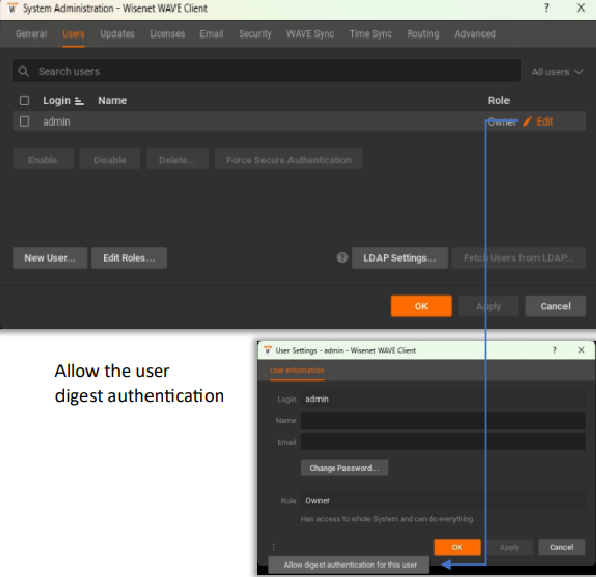

Make sure that in Security section of WAVE server all first 3 checkboxes are unchecked:

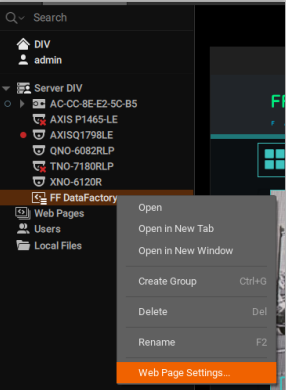

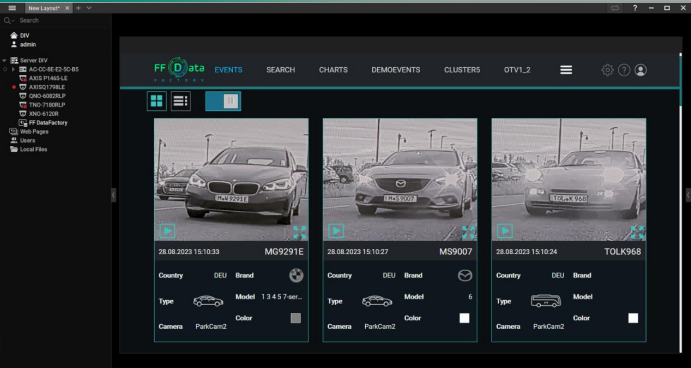

Finally, you will get in WAVE client something like this (by clicking on FF DataFactory page):

For the first attempt of playing video you may see such dialog:
Enter WAVE server credentials

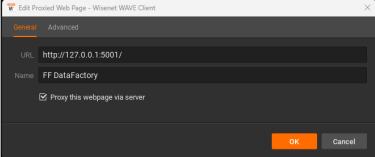

If your WAVE client host is equal to WAVE server host – uncheck “Proxy this webpage via server” checkbox

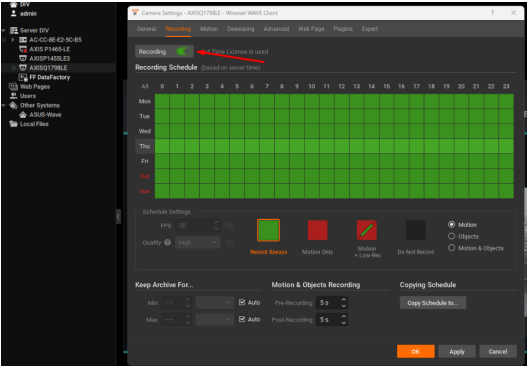

Make sure, that video is recording so it can be played in DF:


​
