WisenetRoadAI, RoadWatch connection

WisenetRoadAI, RoadWatch connection

For events sending you have to go to the camera application and configure the data sending.
Make sure, that port 5001 on Data Factory host is open (added Inbound rule)

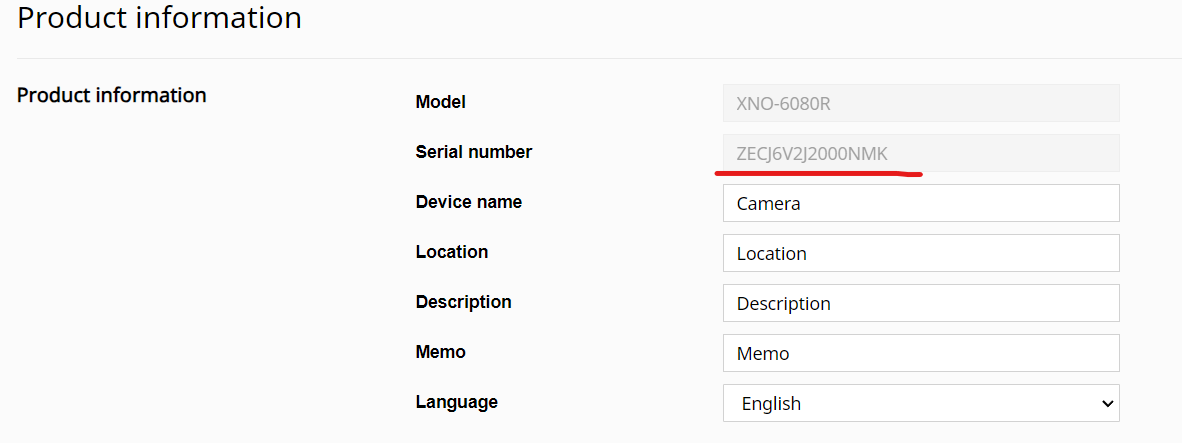

Register the camera in DataFactory with its Serial Number (Standalone mode)


WisenetRoadAI                                                                                         RoadWatch


For both types of applications configure the settings as shown in the screenshots. Most important settings:
▪ Send recognition events set to Basic Event and JSON over HTTP respectively
▪ Set Destination URL (DataFactory) like http://10.0.5.100:5001/api/camera/events/upload
▪ Set specific Camera ID for each camera
▪ Send frame to cloud set to Full frame

​
