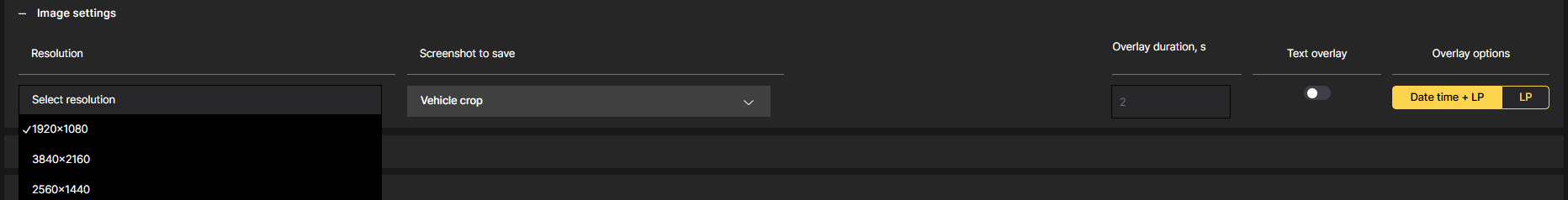

Image settings
Adjust Resolution: 1920х1080 3840х2160 2560х1440 Recognition on 4K resolution widens installation scenarios and adds some versatility to CAMMRA AI usage. The 2-stage approach makes it available and effective; However, this does not mean 4 lanes with dense traffic are fully supported. This function is experimental (BETA), it works stable, but the performance in different scenarios must still be tested. Recommended usage is still 2 or max. 3 lanes with max. mid-speed.
Set the Size of Saved Images: Configure the camera to save images at the desired size to meet your specific requirements. Consider factors - storage capacity and image quality when determining the appropriate size for the saved images.
Enable Overlay Text: Toggle the overlay text feature to display additional information on the captured images. This overlay can include the day, month, year, time, license plate, and car brand and model.
